Large Part Machining Capabilities

Machining Processes

Milling
Boring
Drilling

Turning
Tapping

Machinery Axis

3
4

Equipment Capabilities

CNC Control Capabilities
Horizontal Boring Mills
Vertical Boring Mill

Planer Mill
Automatic Tool Changers

Materials

Steel
Cast / Gray Iron
Aluminum
Stainless Steel
Copper
Titanium

Tool Steel
Inconel
Monel
Hardox
Hastelloy

CNC Length

Up to 180″

CNC Width

Up to 90″

Manual Length

Up to 336″

Manual Width

Up to 110″

Turning Swing

Up to 90″

Lifting Capacity

Up to 30,000 lbs.

Tolerance (+/-)

±.0005″

Inspection

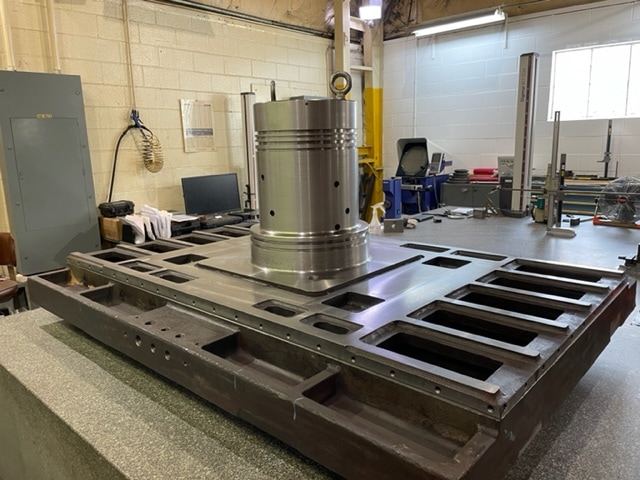

14′ x 8′ x 30″ Granite Surface Plate
96″ Ferro Arm Coordinate Measuring Machine (CMM)
Digital Height Gauges

Testing

Hardness
Ultrasonic

Mag Particle
Dye Penetrant

Documentation

Process Plan
First Article Deviation Request, Cause and Corrective Action

Additional Capabilities

Fabricating
Blanchard Grinding
Surface Grinding

Production Volume

One Piece to Production Quantities

Additional Information

Industry Focus

Power Generation
Aerospace / Aircraft
Mining
Plastic Injection Molding

Gas Compression
Machine Tool
Steel Mill

Intended Application

Press Machinery
Foundry Equipment Machinery
Bottling Equipment
Fabrications
Castings
Forgings
Plates

Magnet Cores
Fracking Components

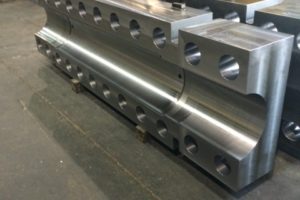

Fluid Ends

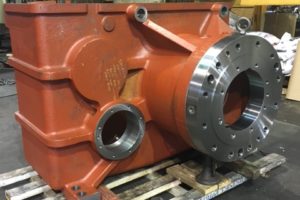

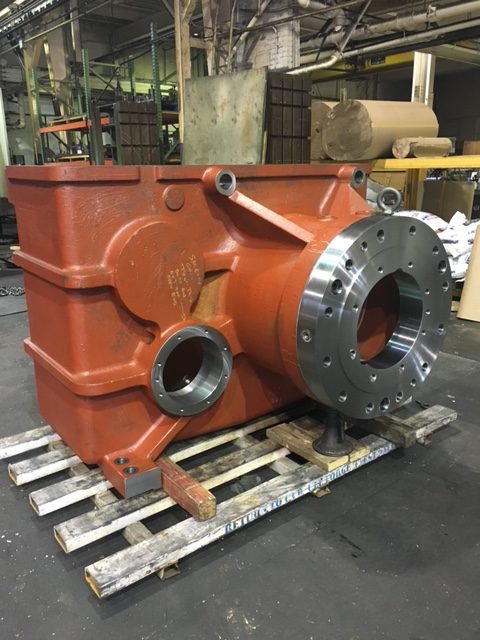

Gear Housings
Platens
Bolsters

Industry Standards

ISO Compliant
QS Compliant

MIL-I-45208
National Tooling and Machine Association (NTMA)

File Formats

SURFCAM
DXF
IGES

PDF
TIF
DWG
